HIKVISION DS-K2601T(O-STD) Pro Series Access Controller

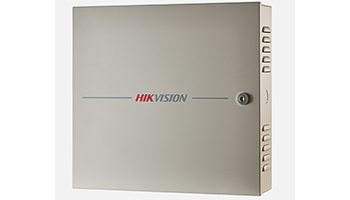

Controller for 1 door on both sides. Supports 2 Wiegand (w26 / w34) / 2 RS-485 OSDP readers. 2 relay outputs (1 for door control, 1 alarm). 9 Alarm inputs (1 for door status, 1 for Exit button, 1 tamper, 2 programmable, 4 programmable with EOL resistor). Buffer memory for 100,000 users (expandable up to 200,000 after order) and log up to 300,000 events (expandable up to 600,000). Built-in TCP / IP and RS-485 communication interfaces. LED status indication (power supply, communication, system problem). Supports NTP time synchronization, watchdog function, online / offline mode. Power relay for door control when integrated with a fire system. Anti-passback with Hik-Central, Multi Door Interlock function, Group authorization for unlocking doors, Allowing user access with main card, Encryption and locking of Mifare cards to the system. Included in the set is a metal box (dimensions 370x345x90 mm) with a switch and power supply 220 / 12V 50W with the possibility of battery backup.
