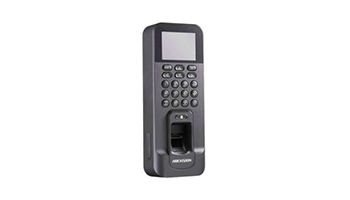

HIKVISION DS-K1T804MF Standalone biometric terminal



Independent biometric terminal for access control and references for control of working hours through the local menu. Supports Mifare cards. Built-in fingerprint reader. Different authorization modes (card / PIN code / fingerprint in different combinations). Memory for 3,000 cards, 100,000 events, 3,000 fingerprints and 150,000 time records. Ability to define up to 32 work shifts and schedules. Built-in color 2.4 '' TFT display 320x240. Numeric PIN keypad. Inputs: 1 for exit button, 1 for door status, 1 alarm. Outputs: 1 for door, 1 alarm. RS-485 interface for secure module. Wiegand (w26 / w34) interface for external card reader. LED and sound indication, tamper, built-in clock and watchdog function. TCP / IP communication + Wi-Fi + USB interface. Operating temperature -10ºС to + 55ºС. Suitable for indoor installation (IP42). Power supply 12V DC / 2A. Dimensions 205 × 76.5 × 37 mm
