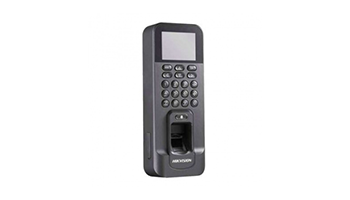

HIKVISION DS-K1T804EF Standalone biometric terminal for access control and reports for control of working hours via the local menu. Supports EM 125Khz cards



Independent biometric terminal for access control and references for control of working hours through the local menu. Supports EM125Khz cards. Built-in fingerprint reader. Different authorization modes (card / PIN code / fingerprint in different combinations). Memory for 3,000 cards, 100,000 events, 3,000 fingerprints and 150,000 time records. Ability to define up to 32 work shifts and schedules. Built-in color 2.4 '' TFT display 320x240. Numeric PIN keypad. Inputs: 1 for exit button, 1 for door status, 1 alarm. Outputs: 1 for door, 1 alarm. RS-485 interface for secure module. Wiegand (w26 / w34) interface for external card reader. LED and sound indication, tamper, built-in clock and watchdog function. TCP / IP communication + Wi-Fi + USB interface. Operating temperature -10ºС to + 55ºС. Suitable for indoor installation (IP42). Power supply 12V DC / 2A. Dimensions 205 × 76.5 × 37 mm
