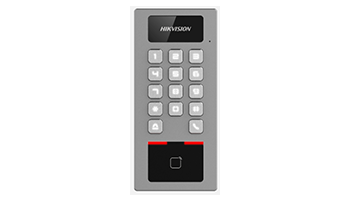

HIKVISION DS-K1T502DBWX Access Control Terminal



Manage access control and intercom functions in one device

IP65 & IK09 protections, as well as increased stability with zinc alloy materials

Supports multiple authentication methods

Remote control via the Hik-Connect mobile app

Connects to external access controller via Wiegand protocol

Video intercom via SIP protocol. Supported SIP server: Brekeke, miniSipServer, and FreePBX

RS-485 communication for connecting external card reader and calling elevator

Supports AP mode

Press calling button to call one of the following objects: management center, indoor station, specified indoor station, or Hik-Connect App

Supports up to 256 GB SD card memory



Self-contained vandal-proof access control terminal, built-in Mifare 13.56Mhz card reader. Supports two-way audio via SIP2.0 protocol, as well as remote management via the Hik-Connect mobile app. The terminal can also be used as an external intercom unit. 1x RJ-45, Wi-Fi, 1x Wiegand (output only), 1x RS-485, 1x door relay, exit button, tamper, MUK. Supported card capacity: 100,000, events 300,000. IP65, IK9, Power supply 1A 12-24VDC, consumption <12W.
