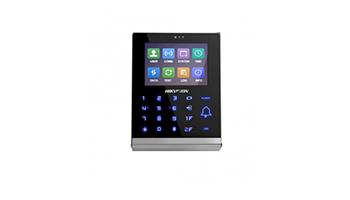

HIKVISION DS-K1T105E Standalone access control terminal with EM 125kHz cards



Standalone access control terminal, supports EM 125kHz cards. Ability to encrypt and lock Mifare cards to the system. Different authorization modes (card / card + PIN code). Memory for 100,000 cards and 300,000 events. Built-in color 2.8 '' TFT display 320x240. Digital touch PIN keyboard. Inputs: 1 for exit button, 1 for door status, 2 alarm. Outputs: 1 for bell, 1 relay. RS-485 interface for external card reader. LED and sound indication, tamper, built-in clock and watchdog function. TCP / IP communication + Wi-Fi interface. Built-in speaker for voice guidance. Operating temperature -20ºС to + 65ºС. Suitable for indoor installation. Power supply 12V DC / 500mA. Dimensions 122 × 82 × 23 mm
