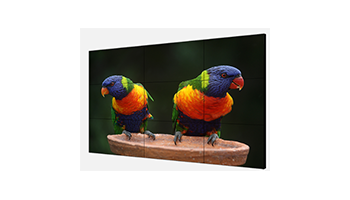

Hikvision DS-D2046NL-C 46-inch 3.5mm LCD Display Unit
Direct-lit LED backlight with uniform brightness and no boundary shadows
1920 × 1080 resolution, 178° viewing angle
Ultra-narrow 3.5 mm bezel design
Factory calibration for color uniformity
Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
Stable and 24-hour continuous working
Metal casing for preventing from radiation and magnetic & electric field interference
Wall-mount and modular brackets available to meet various installation requirements
-
Product Model
-
Product ModelDS-D2046NL-C
-
Display
-
Screen Size46 inch
-
Active Display Area1018.08 (H) mm × 572.67 (V) mm
-
BacklightDirect-lit LED backlight
-
Pixel Pitch0.53 mm
-
Physical Seam3.5 mm
-
Bezel Width2.3 mm (top/left), 1.2 mm (bottom/right)
-
Resolution1920 × 1080@60 Hz (downward compatible)
-
Brightness500 cd/m²
-
Viewing AngleHorizontal 178°, vertical 178°
-
Color Depth8 bit, 16.7 M
-
Contrast Ratio3500:1
-
Response Time8 ms (G to G)
-
Color Gamut72% NTSC
-
Surface TreatmentHaze 25%, 2H
-
Interface
-
Video & Audio InputHDMI × 1, DVI × 1, VGA × 1, CVBS × 1, USB × 1
-
Video & Audio OutputDVI × 1, VGA × 1, CVBS × 1
-
Control InterfaceRS232 IN × 1, RS232 OUT × 1
-
Power
-
Power Supply100-240 VAC, 50/60 Hz
-
Power Consumption≤ 111 W
-
Standby Consumption≤ 0.5 W
-
Working Environment
-
Working Temperature0°C to 40°C (32°F to 104°F)
-
Working Humidity20% to 90% RH (non-condensing)
-
Storage Temperature-20°C to 65°C (-4°F to 149°F)
-
Storage Humidity5% to 90% RH (non-condensing)
-
General
-
Casing MaterialSECC
-
Mounting Hole Pitch 600 (H) mm × 400 (V) mm
-
Product Dimension (W × H × D)1021.98 mm × 576.57 mm × 72.2 mm (40.24'' × 22.7'' × 2.84'')
-
Package Dimension (W × H × D)Carton with two displays: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'') Carton with a single display: 1214 mm × 783 mm × 414 mm (47.8'' × 30.83'' × 16.3'')
-
Net Weight18.96 ± 0.5 Kg (41.80 ± 1.1 lb) for single display
-
Gross WeightCarton with two displays: 47.12 ± 0.5 Kg (103.88 ± 1.1 lb) Carton with a single display: 25.79 ± 0.5 Kg (56.86 ± 1.1 lb)
-
Packing ListLCD display × 1, power cable × 1, network cable × 1, screw × 4, installation instruction × 1, remote control × 1, IR receiver × 1, CD-ROM × 1, RS-232 converter × 1
