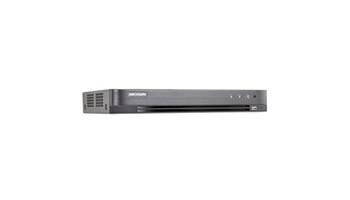

Hikvision DS-7216HQHI-K2/A(S) 2MP TURBO HD 16 CHANNEL 2 SATA AUDIO OVER COAX DVR



4/1 alarm in/out

H.265 Pro+/H.265 Pro/H.265 video compression

HDTVI/AHD/CVI/CVBS/IP video input

Audio via coaxial cable

Up to 24-ch IP camera inputs (up to 6 MP)

Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission

Up to 10 TB capacity per HDD





16-channel Pentbrid HD-TVI / AHD / CVI / IP digital recorder; supports 16 HD-TVI / AHD / CVI, analog or IP cameras in any combination + 8 IP cameras (up to 6.0Mpx); audio transmission via coaxial cable (recording of 8 audio channels); H.265 + / H.265 / H.264 + / H.264 compression; resolution up to 2 megapixels (1920x1080) / 4MP Lite (1280x1440) for TVI / AHD / CVI; recording speed (total): 240fps @ 4MP Lite / 1080p, 400fps @ 720p / 960H / D1 (real-time); up to 2 SATA HDD (up to 10TV / disk); 1 audio input / 1 output; 4 alarm inputs / 1 output; Instant Playback / Smart Search features; analytical functions: line crossing / zone disturbance (for 4 channels) / sound detection / anti-sabotage; 2 USB ports; 1Gbit LAN; RS-485; video outputs: HDMI (4K resolution) / VGA / BNC; viewing and managing via Internet PC / mobile phone (iOS / Android) with free CMS software iVMS-4200 / Hik-Connect; P2P (HikCloud); mouse control; graphical menu in Bulgarian; without HDD; 12Vdc / 25W; dimensions 380x320x48 mm
