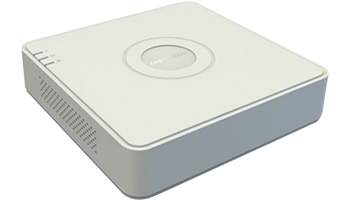

HIKVISION DS-7108HGHI-F1/N(S) 8-ch 1080p Mini 1U Lite H.264 DVR

    8 channels and 1 HDD mini size DVR
    H.264+ / H.264 video compression
    Encoding ability up to 1080p lite @ 12 fps
    5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
    Up to 10 network cameras can be connected;




    Recording
    Video compressionH.264+/H.264
    Encoding resolution

    When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
    When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF

    Frame rate

    Main stream:

    When 1080p lite mode enabled:

    1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

    When 1080p lite mode not enabled:

    For 720p stream access:

    720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

    For SD stream access:

    WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

    Sub-stream:

    CIF/QVGA/QCIF@25fps (P)/30fps (N)
    Video bit rate32 Kbps to 4 Mbps
    Dual streamSupport
    Stream typeVideo, Video & Audio
    Audio compressionG.711u
    Audio bit rate64 Kbps

    Video and Audio
    IP video inputUp to 8-ch Up to 960p resolution Support H.264+/H.264 IP cameras
    Analog video input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
    Turbo HD input1080p25, 1080p30, 720p25, 720p30
    AHD input1080p25, 1080p30, 720p25, 720p30
    HDCVI input1080p25, 1080p30, 720p25, 720p30
    CVBS inputSupport
    Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)
    Audio output1-ch, RCA (Linear, 1 KΩ)
    Two-way audioReuse the first audio input
    Synchronous playback8-ch
    VGA/HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

    Network
    Remote connections128
    Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
    Network interface1, RJ45 10M/100M self-adaptive Ethernet interface

    Auxiliary interface
    SATA1 SATA interface
    CapacityUp to 6 TB capacity for each disk
    Alarm in/outN/A
    USB interfaceRear panel: 2 × USB 2.0

    General
    Power supply12 VDC
    Consumption (without HDD)≤ 12 W
    Working temperature-10 °C to 55 °C
    Working humidity10% to 90%
    Dimensions (W × D × H)200 × 200 × 45 mm
