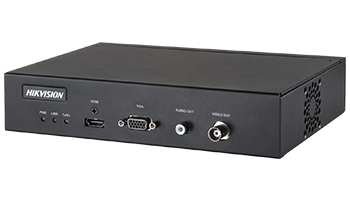

HIKVISION DS-6901UDI Decoder 4K NVR

649.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 50404

Βάρος: 1.200 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

HIKVISION DS-6901UDI Decoder 4K NVR

DS-6901UDI provides HDMI, VGA, and BNC output interfaces.
DS-6904UDI, DS-6908UDI, DS-6910UDI, DS-6912UDI, DS-6916UDI provide HDMI (adaptable to DVI-D) and BNC output interfaces.
Up to 4K (3840 × 2160@30Hz) via HDMI output interfaces (only for even interface).
Up to 16-ch decoding at 12 MP resolution (DS-6916UDI).
H.265+/H.265, H.264+/H.264, MPEG4 and MJPEG video compression.
S, RTP, TS, ES, HIK encapsulation formats.
Three encoding levels: baseline, main, and high-profile.
G.722, G711A, G726, G711U, MPEG2-L2, and AAC audio compression.
Two decoding modes: active decoding and passive decoding.
Remote video files’ decoding output.
Supports window opening and window roaming.
Supports multi-screen control with PC installed with RSC server.
Supports Wi-Fi module access to display the signal from IOS/Android mobile phone or pad on video wall.
Wi-Fi can be enabled via the Web browser or client software. You can get stream and decode the video on the video wall when Wi-Fi is enabled if no wired network can be accessed.
Gets stream and decodes via URL and RTSP from encoding devices.
Displays the decoded video stream on the video wall by directly linking cameras or by stream media forwarding.
You can configure what the video wall show when decoding ends and streaming fails via the Web browser and client software.
Configurable LED width and height parameters when the LED is connected.
Regular and irregular virtual screen configurable to display multiple signal sources and get rid of the restriction of physical screen.
Accessible by thermal network camera and you can view the temperature measurement, dynamic fire source detection, ship detection and VCA information in live view and playback.
You can enable or disable the smart information for the thermal network camera.
Remote PTZ control via transparent channel.
Two-way audio.
Port aggregation technology (Ethernet Channel).

Video/Audio output
HDMI output:		1-ch 4K: 3840 × 2160@30Hz ( for odd interface only) 1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz UXGA: 1600 × 1200@60Hz (for odd interface only) 720p: 1280 × 720@50Hz/60Hz SXGA: 1280 × 1024@60Hz XGA: 1024 × 768@60Hz
VGA output:		1-ch 1080p: 1920 × 1080@50/60Hz WSXGA: 1680×1050/60Hz SXGA: 1280 × 1024@60Hz 720p: 1280 × 720@50Hz/60Hz XGA: 1024 × 768@60Hz
BNC output:		1-ch

Audio/Video decoding
Decoding resolution:		Up to 12MP
Decoding channel:		16-ch
Decoding capability:		12MP@20fps: 2-ch 8MP@30fps: 4-ch 5MP@30fps: 6-ch 3MP@30fps: 10-ch 1080p@30fps: 16-ch
Split screen:		1/4/6/8/9/12/16

External interface
Network interface:		1, 10/100/1000 Mbps self-adaptive Ethernet interface
Serial interface:		1 RS-232 (RJ45), 1 RS-485
Two-way audio in:		1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Two-way audio out:		1-ch, 3.5 mm connector (2.0 Vp-p, 1 KΩ)
Audio output:		1-ch
Alarm in:		8
Alarm out:		8

General
Power supply:		12 VDC
Power consumption:		≤ 15 W
Working temperature:		-10 °C to +55 °C (14 °F to 131 °F)
Working humidity:		10% to 90%
Dimensions(W × D × H):		220 × 148 × 45 mm (8.66 × 5.83 × 1.77 inch)
Weight:		≤ 1.2 kg (2.65 lb)
