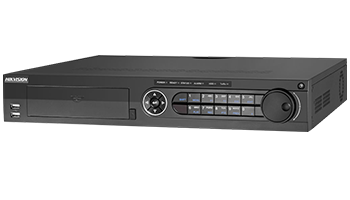

HIKVISION DS-7316HUHI-K4 16 Channel PENTABIRD Turbo HD DVR 4k UHD

839.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 50208

Βάρος: 5.100 kg
Μη Διαθέσιμο

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Support Cloud storage(One Drive, Google Drive or Drop Box
• Up to 8MP resolution for recording
• HDMI output at up to 4K (3840 × 2160) resolution
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
• 16-ch synchronous playback
• Supports POS triggered recording and POS information overlay

Video/Audio Output
HDMI2 Output:		1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Recording resolution:		8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: 8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps-10 Mbps
Stream Type:		Video/Video&Audio
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent)
Audio Output:		2-ch, RCA (Linear, 1 kΩ)
Dual Stream:		Support
Playback Resolution:		8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P,DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,ONVIF,SNMP

Hard Disk Driver
Interface Type:		4 SATA Interfaces
Capacity:		Up to 8 TB capacity for each disk
e-SATA Interface:		1 eSATA interface

Disk Array
Array Type:		RAID0, RAID1, RAID5, RAID6,RAID10

External Interface
Network Interface:		2; 10M / 100M / 1000M self-adaptive Ethernet interfaces
USB Interface:		2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel
Serial Interface:		1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface
Alarm Input:		16-ch
Alarm Output:		4-ch

General
Power Supply:		100 to 240 VAC
Consumption:		≤ 65W(without hard disks)
Working Temperature:		-10 oC to +55 oC (+14 oF to +131 oF)
Working Humidity:		10% to 90%
Dimensions:		445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)

Video/Audio Input
Audio Input:		4-ch
Video Compression:		H.265+/H.265/H.264+/H.264
Analog and HD-TVI video input:		8-ch,BNC interface (1.0Vp-p, 75 Ω)connection
Supported camera types:		Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 support CVBS input
IP Video Input:		2-ch(up to 18ch) Up to 8MP resolution
Audio Compression:		G.711u
Audio Input Interface:		4-ch, RCA (2.0 Vp-p, 1 KΩ)
Two-way Audio:		1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input)

Τιμή Μονάδος: 839.90 €
Κατασκευαστής: HIKVISION
Βάρος: 5.100 kg
