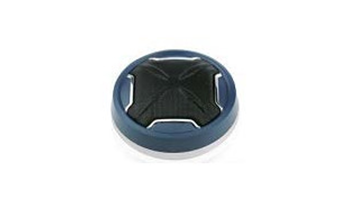

Highly sensitive DSP microphone MX-K10



Highly sensitive DSP microphone, silicone MEMS element. Omni-directional. Frequency x-ka 20Hz ~ 20kHZ. Sensitivity -22dB. Signal / noise 85dB (1m 40 dB useful signal level). Dynamic range 105dB (1kHz at max SPL). Maximum sound level 125dB SPL (1kHz, THD 3%). Impedance 600Ω, output signal level 2.5Vpp. Triangulation, WDRC, DSP & Multistage dynamic noise reduction. Sensitivity potentiometer. Power supply: DC9 ~ 20V / 30mA. Built-in protections ESD, Polarity, Lightning protection. Operating temperature: -40ºC ~ 70ºC. Aluminum body with dimensions: Ф80х30mm. For rooms with an area of 10-300m2. Weight 0.092 Kgr
