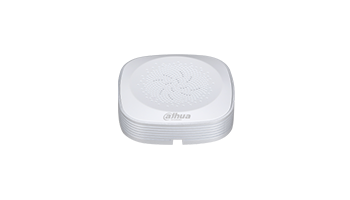

Highly sensitive digital MEMS electromechanical silicone microphone, HAP201



Highly sensitive digital MEMS electromechanical silicone microphone. Omni-directional. Built-in CPU and preamp. Frequency x-ka 20Hz ~ 20kHZ. Sensitivity -38dB. Signal / noise 80dB (1m 40 dB useful signal level). Dynamic range 106dB (1kHz at max SPL). Maximum sound level 120dB SPL (1kHz, THD 1%). Impedance 25Ω, output signal level 2.5Vpp. Sensitivity potentiometer. White PVC case. Power supply: 9 ~ 18VDC / 60mA. Built-in ESD and lightning protection 8 / 6kV. Operating temperature: -20ºC ~ 60ºC. Dimensions: 79.6x79.6x21.5mm. For rooms with an area of 1-150m2.



Weight 110gr
