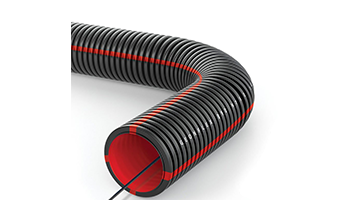

GEONFLEX N750 Double-layer HDPE corrugated pipe for underground laying with cable guide Ø200, GEONFLEX N750 Ф200



Double layer HDPE corrugated pipe for underground laying with cable guide. Smooth inner layer of material with up to 50% lower friction for easy wiring. Patented technology to reduce static electricity. Patented technology for HDPE material that does not attract rodents. UV stabilized HDPE material with resistance to UV radiation over 5 g for outdoor storage. Halogen-free, no release of toxic or corrosive gases in case of fire. Outer / Inner diameter 200/169.1mm; . Mechanical resistance ≥750N / 5cm. Cable guide with 650N resistance. Outer layer in color: black (RAL 9004) with the possibility of longitudinal marking in different color RAL 3020/6037 for standard separation of wires. Working temp: -5º ~ 90ºC. Degree of protection with Kouvidis adhesive: IP68. Suitable for installation in concrete, plaster, underground. VDE EN certificates: EN61386-1: 2008; EN61386-24: 2010; EN61386-24: 2011-08; EN61386-24: 2010. Roll 25 / 50m.



Weight c.a. 3 Kgr
