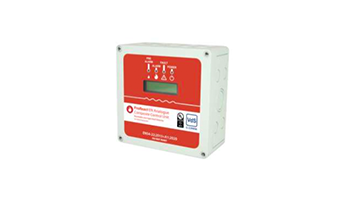

Fireclass PACCU EN 516.016.153 Controller for Analogue LHD temperature sensitive cable to control 1 zone



EN54 Controller for Analogue LHD temperature sensitive cable to control 1 zone. Alarm at programmable fixed threshold 54/64/66/72/79/80/86/100°C or thermo-differential when the temperature increases by 15°C/min during 2% of the length of the zone. Zone length 30~500m. Built-in two-line LCD display. Built-in diode and sound indication. Pre-alarm and alarm, hp and zone break. Configuration with PC or self-learning mode. Possibility to move the area with an insensitive cable up to 250m. Interfaces: 1x NC DC30V/2A Alarm outputs, 1x NC DC30V/2A Pre-alarm output, 2x Fault output, 1x remote reset input. Power supply: DC20~30V/100mA. Operating Temp.: 0~50°C. Housing with degree of protection IK08 & IP65, dimensions: 182x180x90mm. EOL: 1kΩ (included in the package). EN54-22:2015+A1:2020.
