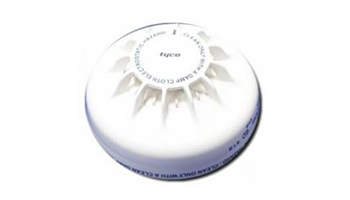

Fireclass MD611Ex 516.052.041.Y Conventional intrinsically safe thermal detector with microprocessor control for potentially explosive rooms



Ex Conventional intrinsically safe thermal detector with microprocessor control for potentially explosive rooms. LED indicator, parallel signal output. Working voltage DC16~28V, standby current 40~45μA, current in alarm state 30mA. Operating temperature: -20°~70°C (- 40°~120°C/3min). ABS Body dimensions Ø 109x43mm. Suitable for zones 0 to 20. EN standards: EN 54-5 A1S; EN50130-4; EN50 014; EN50 020, ATEX: Ex II 1G, Cenelec: EEX is IIC T5.
