Fireclass Digital LHD PVC EN 78 516.016.17x thermosensitive cable for linear detection with UV and oil resistant

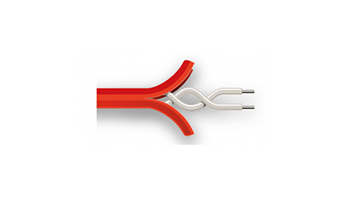

EN54 Digital Plus LHD thermosensitive cable for linear detection with UV and oil resistant flame retardant LSZH insulation suitable for indoor and outdoor conditions when securing tunnels, tanks, parking lots, conveyors, escalators, cable trays, double floor, above suspended ceiling, etc. Appropriate for eye-threatening premises. Maximum length of zone 1000m. Trigger Threshold 78°C. Non-refundable. Construction: twisted pair of trimetallic wires Ω0.91mm with thermosensitive polymer insulation. Outer diameter Ø5.72mm, bending radius 100mm. Working eg: DC0~74V, AC0~49V. Resistance: 125Ω/km. Roller 100/500m. Operating temp.: -40°~xx°C. (Option: external steel braid for mechanical protection.) Price per meter. EN54-28:2016.
