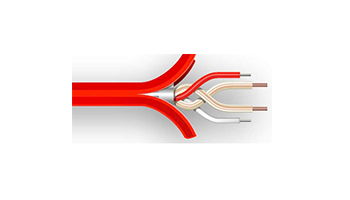

Fireclass ALHD 516.016.020 516.016.020FC ProReact Analogue Cable PVC (500m)



ProReact Analogue Cable which is designed for use with the ProReact Analogue Control.



The ProReact Analogue Linear Heat Detection Cable provides an easy installation method for sensing changes in temperature. The analogue technology offers separate Pre-Alarm and Alarm outputs in order to maximise functionality, coupled with open and short circuit detection and discrimination.



Ambient temperature compensation maintains alarm temperature accuracy. The new EN Analogue LHD system meets the strict requirements of EN54-22:2015 as certified by VdS Global.



Key Features



500m

Material: PVC

Analogue Cable

Approved to EN54-22:2015 Class A1I, A2I and BI as certified by VdS Global

ProReact EN Analogue LHD system is restorable following an activation if the sensor cable is not subject to a temperature above its maximum recoverable temperature of 125?C

Reduces the likelihood of false alarms through a temperature compensation feature
