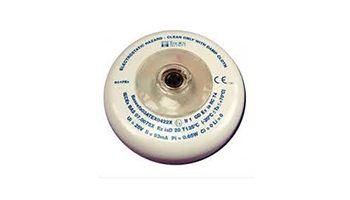

Fireclass 601FEx 516.600.066 Conventional intrinsically safe infrared flame detector with microprocessor control for potentially explosive rooms



Ex Conventional intrinsically safe infrared flame detector with microprocessor control for potentially explosive rooms. Insensitive to sunlight. Flame detection with an area of 0.05m2~0.4m2(4~38m installation height). LED indicator, parallel signal output. Working voltage DC16~28V, standby current 300μA, current in alarm state 35mA@DC18V. Operating temperature: -20°~70°C. ABS Body dimensions Ø 108x21.2mm. Suitable for zones 0 to 20. EN standards: EN 54-10; EN50130-4; EN 60079-0:2006; EN60079-11:2007; EN61241-11:2006; ATEX: Ex II 1G, Cenelec: EEX is IIC T5.
