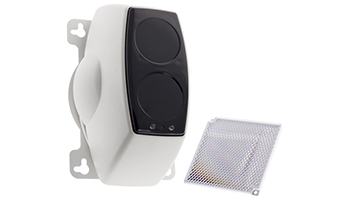

The Fireray® 50R series of reflective infrared optical beam smoke detectors are comprised of a single unit incorporating an infrared Transmitter and Receiver. The signal is reflected by a prism and analysed for smoke presence. The system is designed to be mounted so that the beam will project between 0.3 and 0.6 metres below and parallel to the ceiling. Lateral detection may be up to 7.5 metres either side of the beam.



Key Benefits



Single Compact Housing

Area coverage 50 metre model available

12-24 Vdc Operation

Low current Consumption

Robust Construction

Conforms to: BS5839 Part 5 and EN54 part 12, UL and VdS

Applications



The Fireray® 50R series of reflective infrared optical beam smoke detectors provide economical and effective protection of large, open plan spaces with high ceilings, particularly if access to ‘point type’ smoke detectors presents practical difficulties.



Weight 0.67 Kgr
