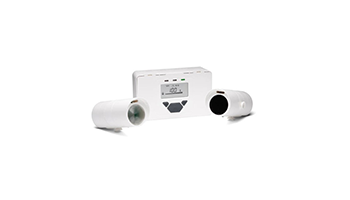

FFEUK Fireray 3000 detector kit



Conventional linear detector with receiver and transmitter with a range of 5m. up to 120m. for use in combination with the Fireray 3000 system / the detectors are connected to the controller and can be controlled by it /.



The Fireray 3000 system is an end to end infrared optical beam smoke detector (OBSD) which has been designed using the latest optical technology, incorporating modern industrial, electronic and software techniques. This detector offers cost effective protection of large, open area spaces with high ceilings. It is also very suited to applications where access to ceiling mounted smoke detectors presents practical difficulties.



The product is designed for applications where line of sight for the IR(infra-red) detection path is narrow and where the building structure uses reflective surfaces. It has also been designed to be aesthetically pleasing and thus can equally suit modern architectural buildings as well as historical sites, particularly where ornate ceilings exist. For installations complying with UL268/NFPA72, the maximum distance of Detector and Reflector from the ceiling must be 10% of the distance between floor and ceiling.



Separate Transmitter and Receiver Head

Range 16.5 to 393 feet, configurable per set of Detectors

Lateral Spacing per NFPA 72 is 60 feet

2-wire Interface between Controller and Receiver

Single and Twin Channel capability

Separate Fire and Fault Relays per Detector

Built-in electronic UL/ULC obscuration-acceptance fire test

Knockouts for ease of installation and wiring

Package Includes



1 x Transmitter

1 x Receiver

1 x System Control Unit
