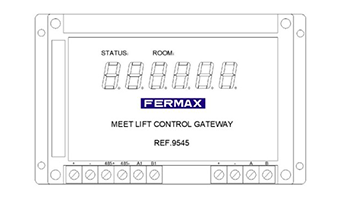

FERMAX 9545 MEET LIFT CONTROL GATEWAY



MEET LIFT CONTROL GATEWAY - Elevator integration module. Connects to an external panel and allows the following functions: call the elevator to the floor; sending the elevator to the ground floor; restriction only to the subscriber's floor; opening the door for a visitor. Power supply 12VDC, Consumption: 60mA in standby mode and 110mA in operating mode. Dimensions: 145x90x45



DESCRIPTION



The MEET lift control gateway is a device between the building's intercom system and the lift control system.



Performs the automation of the following functions:



• Call the elevator upwards, from the apartment's own MEET monitor.

• Call the elevator down, from the apartment's own MEET monitor.

• Door opening and lift activation when the door opener button is activated from the monitor after a call, for access only to the floor of the apartment called.

• Reports the location status of the elevators (up to 3) and displays it.

• Opening of the door and enabling the lift to access a certain group of floors when an authorized proximity card is presented in the reader of the block plate.



This group can be formed by the floor of the apartment where the monitor is, and also other restricted access floors such as the gym, social club, garage, etc. This functionality is also valid for access control through facial recognition.



TECHNICAL SPECIFICATIONS



Power Consumption:



• On standby: 60mA

• Working: 110mA



Working voltage:

• 12 Vdc



Working Environment:

• Temperature: -40 oC – 55 oC

• Humidity: 10 – 93% (Non-condensing)



Dimensions:

• 145×90×45mm



Weight: 0,2437 kg



Size of product when packed: 6,3x17,7x9,5 cm
