FERMAX 9531 MILO DIGITAL multi-station video intercom external panel from the MEET series

919.00 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31097

Βάρος: 1.900 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

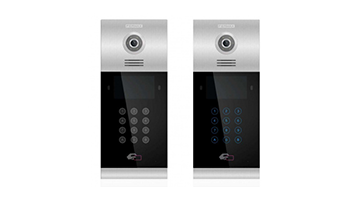

FERMAX 9531 MILO DIGITAL multi-station video intercom external panel from the MEET series

Multi-post video intercom external panel MILO DIGITAL from the MEET series made of aluminum profile
4.3 "color screen, face recognition function (up to 6,000 users)
Access control with cards up to 100,000 cards or with PIN code - up to 8 pins
Possibility to integrate up to 4 IP cameras to the panel, to track the visitor through the corridors and common areas
1.2MP camera with viewing angle: Horizontal 72º, Vertical 54º
The panel has 1xRJ-45, 1xRS485, 1xWiegand 26 bit for connection to other systems as well as a built-in Web server for remote configuration and management
Possibility to add up to 4 additional relays (requires module 1491) for control of garages, doors, lighting, etc.
Power supply 12VDC
Consumption: 250mA in standby mode and 500mA in run mode
IP54
Dimensions: 154x379x50
Possibility to order the panel with digital buttons at the same price

TECHNICAL SPECIFICATIONS

System:

• CPU: Quad-core Cortex™-A7 1.5GHz

• GPU: Mali400MP2

• FLASH: 4GB

• SDRAM: 1GB DDR3L

Screen:

• 4.3” Color TFT

• Resolution 480*272 pixel

• View angle: 110º H, 90º V

• Contrast: 400/1

• Brightness: 200cd/m2

Audio Features:

• G.711 codec

• Audio OLR> 15dB

Camera:

• 1/3” CMOS Color

• Horizontal 72º, Vertical 54º

• 1.2 Mega Pixels

• Minimum Illumination 0.5 LUX. Automatic white led activation

• AWB

Power Consumption:

• On standby: 250 mA

• Working: 500 mA

Working voltage:

• 12 VDC

Connectivity:

• Ethernet RJ-45 Connector

• RS485 connection port for lift control

• Secondary access control reader connection (Wiegand 26)

• Built in web server for configuration and remote management

Working Environment:

• Temperature: -40 oC.. + 70 oC

• Humidity: 20 – 80% (Non-condensing)

• IP 54

REFERENCES

Ref.9531 DIGITAL VIDEO MEET PANEL

Ref.9532 DIGITAL VIDEO TOUCH MEET PANEL

Ref.9542 MEET PANEL FLUSH BOX – L

Weight: 1,8497 kg

Size of product when packed: 10x47x21 cm

Τιμή Μονάδος: 919.00 €
Κατασκευαστής:
Βάρος: 1.900 kg
