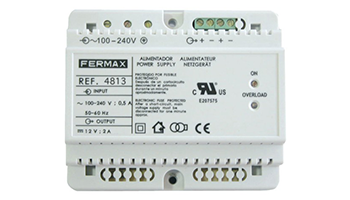

FERMAX 4813 P.S.U. DIN6 100-240VAC/12VDC-2A

99.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31143

Βάρος: 0.400 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

FERMAX 4813 P.S.U. DIN6 100-240VAC/12VDC-2A

DESCRIPTION

Used to power the different equipment in a Fermax installation.

Constructed in self-extinguishing VO material.

Includes a set of covers to protect the connection terminals.

DIN-6 rail format for easy installation inside an electrical equipment box, or can can be screwed directly onto the wall.

TECHNICAL SPECIFICATIONS

DIN 6 dimensions: 105x 90 mm x60 mm

Input tension: 110-240 Vac

Output tension: 12 Vdc

Output current: 2A

Input protection: PTC and 2,3A fuse

Input protection: Electronic limitation for overload and short circuit

Input frequency: 50-60 MHz.

With two function indicator LEDs:

- ON LED lit: indicates that the power supply is working.

- OVERLOAD LED lit: indicates maximum current exceeded (it will be necessary to reduce the installation load or add additional power supply/supplies).

- ON LED+OVERLOAD blinking: indicates short circuit.

Weight: 0,3146 kg

Size of product when packed: 11x9,5x6,5 cm

Τιμή Μονάδος: 99.90 €
Κατασκευαστής:
Βάρος: 0.400 kg
