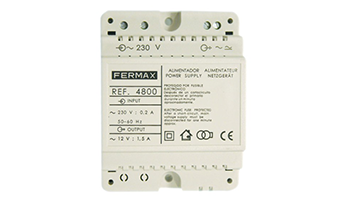

FERMAX 4800 P.S.U DIN4 230Vac/12Vac - 1,5A
DESCRIPTION
Used to power the different equipment in a Fermax installation.
Constructed in self-extinguishing VO material.
Includes a set of covers to protect the connection terminals.
DIN-4 rail format for easy installation inside an electrical equipment box, or can be screwed directly onto the wall.
TECHNICAL SPECIFICATIONS
DIN 4 dimensions: 70x 90x60 mm
Input tension: 230 Vac
Output tension: 12 Vac
Output current: 1.5A
Input protection: PTC and 2,3A fuse
Input protection: Electronic limitation for overload and short circuit
Input frequency: 50-60 MHz.
Weight: 0,5877 kg
Size of product when packed: 11,5x7,5x6,5 cm
