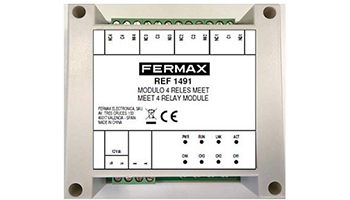

FERMAX 1491 Module for 4 additional relays for MEET panels

159.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 31101

Βάρος: 0.300 kg
Σε απόθεμα

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

FERMAX 1491 Module for 4 additional relays for MEET panels

Module for 4 additional relays for MEET panels
Connects via RS-485 to a panel from the series 9531.9532 and 1445
4 relay COM / NO / NC sockets for switching up to 220V / 5A
Power supply: 7-26 Vdc (recommended 12Vcd)
Power consumption: 0.28W in standby mode and 5.5W in operating mode
IP51
Dimensions: 115x90x40
Mounting: 35mm DIN

DESCRIPTION

Meet panel 4 relay module, running under standard Modbus protocol, makes Meet monitors able to extend door release to 4 additional relays or doors. It works as a slave device connected to the RS-485 port of panel #1 of each block.

TECHNICAL SPECIFICATIONS

Power Supply:

7-26 Vdc (12Vdc recommended)
Standby: 0,28W
Maximum: 5,5W

Connectivity:

RS-485 Modbus screwed connection
4 relays output: COM/NO/NC

Operational:

Relay contacts: 220V/5A
Status led
Power. On after power-on.
RUN: Blinking after power-on.
LNK: Valid data received in the last minute.
ACT: RS-485 activity.
Relay activation led: CH1-CH4

Working Environment:

Temperature: -40 oC .. +55 oC
Humidity: 10 – 95% (Non-condensing)
IP: 51

Dimensions:

115 (W) x 90 (H) x 40 (D) mm
35 mm DIN rail mounting
Weight: 0,2204 kg

Size of product when packed: 6,3x17,7x9,5 cm

Τιμή Μονάδος: 159.90 €
Κατασκευαστής:
Βάρος: 0.300 kg
