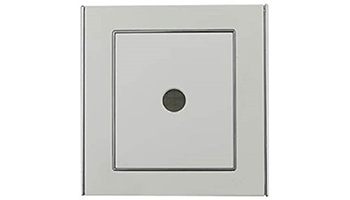

Faceplate CCTV Microphone COTT-C6



DSP condenser microphone for mounting in a standard console 86x86, highly sensitive capacitive element with gold-plated membranes. 360 ° Omni-directional. Frequency x-ka 20Hz ~ 20kHZ. Sensitivity -38dB. Signal / noise 75dB (1m 40 dB useful signal level). Dynamic range 80dB (1kHz at max SPL). Maximum sound level 120dB SPL (1kHz, THD 1%). Impedance 600-1000Ω, output signal level 2.5Vpp. Digital DSP signal processing, AGC, ALC. Adjusted ESD and lightning protection, protection for power polarity. Power supply: DC10 ~ 18V / 20mA. Operating temperature: -25ºC ~ 70ºC. PVC case with dimensions: Ø88x84x25mm. For rooms with an area of 10-50m2. Weight 0.080 kgr
