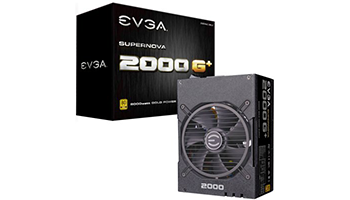

EVGA 220-GP-2000-X2 PSU 2000W
EVGA SuperNOVA 2000 G1+, 80 Plus GOLD 2000W, Fully Modular, FDB Fan, Includes Power ON Self Tester, 10 Year Warranty
Design and features
Power type Power supply module
Power supply Plug-in-module
Input voltage AC 220-240 V
Maximum output power 2000 W
Over Voltage circuit protection
Undervoltage
Over Temperature
Over Current
Short Circuit Protection
Over Power
Modular Power Supply Yes
80 Plus Certification 80 Plus Gold
Efficiency 90%
Certificates TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Current
+ 3.3V 25 A
+ 5V 25 A
+ 12V 166.6 A (1999.2)
+ 5VSB 4 A (6)
-12V 0.5 A (20)
Output connectors
20 + 4-pin connector 1
4/8-pin + 12V Power Connector 2
4 pin peripheral power connector 8
4 pin connector for floppy disk drive 2
15-pin S-ATA connector 18
6/8-pin PCI Express Connector 16
System fans
Max. number of fans supported 2
Number of fans installed 2
Fan - diameter 140 mm
Operating conditions
Maximum ambient temperature 50 ° C
Minimum ambient temperature 0 ° C
Average time between damages 100,000 hours
Other features
Exterior color Black
Included accessories User guide
Dimensions & weight
Depth 2200 mm
Height 85 mm
Width 150 mm
Warranty
Warranty products - refundable Yes
Warranty validity criteria Serial number
Logistic information
Package weight - Gross (kg) 5.41 kg
Package weight - Net (kg) 5.41 kg
Number in package 1
Weight per carton - Gross (kg) 5.41 kg
Retail Packaging Net Weight Carton 0.5 kg
Retail Packaging Net Weight Plastic 0.5 kg
Packages in cartons 1
Box type package
EAN code 4250812424341
