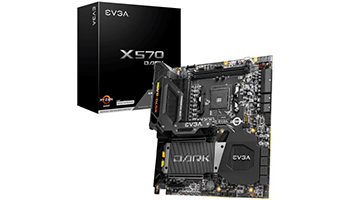

EVGA 121-VR-A579-KR X570



EVGA X570 DARK, E-ATX, Socket AM4, Dual Channel DDR4 4800MHz+, 2x16 PCI-E 4.0 Slots, 3x M.2 Slots, 4x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x USB Type-C, 7.1 HD Audio, WiFI + BT, 2x 2.5Gbps LAN, 3Y



Main Board Desktop - Processor

AMD X570 motherboard chipset

AMD Ryzen Series 3rd Generation processor

AMD Ryzen Series 4th Generation

AMD Ryzen Series 5th Generation

CPU socket Socket AM4

Max. number of installed processors 1

Main Board Desktop - Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Memory Speed/Frequency 4800MHz(PC4-38400)

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Memory Features Two DDR Channels

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10

SATA III-600 (8)

Storage Controller:

PCI-Express (2 x M.2 (Key M))

Plug-in card Wi-Fi Controller:

1 x M.2 (Key E)

Main Board Desktop - Audio Output

Audio integrated Yes

Device Location Built-in

Audio chipset Realtek ALC1220

Audio output type 7.1 channel surround

Main Board Desktop - Networking Specifications

LAN integrated Yes

Intel i225-V network card chipset

WI-FI IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.2

Supported data exchange protocols 2.5 Gbps

Slots provided

PCI Express 4.0 x16 2

PCI Express 4.0 x4 1

Supported interfaces

USB 3.2 Gen 1 4 (USB 3.2 (type A))

USB 3.2 Gen 2 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C))

LAN 2 (RJ-45)

PS/2 1

Antenna 2

S/PDIF 1

Audio interface 5 (3.5 mm mini jack)

Desktop Motherboard - Features

BIOS type AMI

BIOS features UEFI

Motherboard - Features Nvidia SLI

Other features

SATA Cables included

Included accessories Antenna

User manual

Screws

USB Drive

Main Board Desktop - Dimensions&Weight

Extended ATX form factor

Height 305 mm

Width 277 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 2 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in Carton 1

Package type Box
