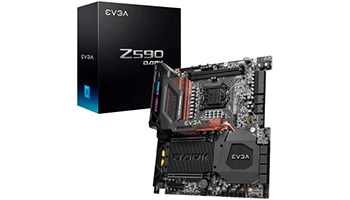

EVGA 121-RL-E599-KR Z590



EVGA Z590 DARK, E-ATX, Socket 1200, Dual Channel DDR4 5333MHz+, 2x16 PCI-E 4.0 Slots, 3x M.2 Slots, 1x USB 3.2 Gen 2x2, 4x USB 3.2 Gen 2, 2x USB 3.2 Gen 1, 1x USB 2.0, Type-C, 7.1 HD Audio, WiFi + BT, 2.5Gbps LAN, 3Y



Main Board Desktop - Processor

Intel Z590 motherboard chipset

Intel 10th Gen Processors

Intel 11th Gen Processors

Socket 1200 processor socket

Max. number of installed processors 1

Main Board Desktop - Memory

Memory type DDR4 SDRAM

Memory form factor DIMM 288-pin

Maximum amount of installed memory 64 GB

Total number of memory slots 2

Offers a non-ECC error checking method

Memory Features Unbuffered

Controller

Built-in Storage Controller:

Supports: Level 0, Level 1, Level 10, Level 5

SATA III-600 (8)

Storage Controller:

PCI-Express (2 x M.2 (Key M))

Wi-Fi Controller:

1 x M.2 (Key E)

Main Board Desktop - Audio Output

Audio integrated Yes

Device Location Built-in

Audio chipset Realtek ALC S1220

Audio output type 7.1 channel surround

Compatible audio standards High Definition Audio

Main Board Desktop - Networking Specifications

LAN integrated Yes

Intel i225-V network card chipset

WI-FI IEEE 802.11ax Wi-Fi 6

Bluetooth Bluetooth 5.2

Supported data exchange protocols Gigabit Ethernet/Fast Ethernet/Ethernet

2.5 Gbps

Slots provided

PCI Express x16 2

PCI Express x4 1

Supported interfaces

HDMI 1 (HDMI (Type A))

DisplayPort 1

USB 3.2 Gen 1 2 (USB 3.2 (type A))

USB 3.2 Gen 2 4 (USB 3.2 (type A))

USB 3.2 Gen 2 x2 1 (USB 3.2 (type C))

LAN 2 (RJ-45)

USB 2.0 1 (USB 2.0 (type A))

Audio interface 5 (3.5 mm mini jack)

Desktop Motherboard - Features

BIOS type AMI

Motherboard - Features Nvidia SLI

Intel Optane Memory Ready

RGB LEDs

Other features

Accessories included User Guide

Main Board Desktop - Dimensions&Weight

Extended ATX form factor

Width 277 mm

Depth 305 mm

Warranty

Warranty products - subject to return Yes

Warranty Validity Criteria Serial Number

Logistics information

Package Weight - Gross (kg) 2 kg

Package Weight - Net (kg) 2 kg

Quantity per pack 1

Carton weight - Gross (kg) 2 kg

Retail Packaging Net Weight Carton 1 kg

Retail Packaging Net Weight Plastic 1 kg

Packages in Carton 1

Package type Box
