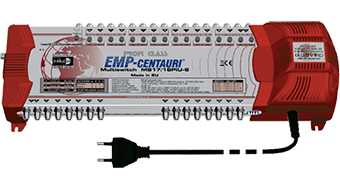

EMP Multiswitch MS17/16PIU-6 V10

169.90 €
Συμπεριλαμβάνεται Φ.Π.Α. 20%
χωρίς τα έξοδα αποστολής

Κωδικός: 14131

Βάρος: 2.000 kg
Μη Διαθέσιμο

Τεχνικά Στοιχεία Βασικά Στοιχεία Αξιολόγηση

Product description:

17in/16out standalone multiswitch for distribution of 16 SAT IF signals including terrestrial for up to 16 users

Brief specification:

Parameter	Condition	Value
Frequency range	Sat. inputs	950-2300 MHz
	Terr. input	5-862 MHz (passive) 40-862 MHz (active)
	Outputs	5-2300 MHz (passive) 40-2300 MHz (active)
Control		DiSEqC 1.0 (2.0) commands
Insertion loss	Sat.	0 dB avg
	Terr. passive	21 dB avg
	Terr. active	7 dB avg
Sat. inputs isolation	Between V/H polarisations	20 dB min
	Between low/high bands	20 dB min
	Between sat. systems	25 dB min
Maximum input level*	Sat.	90 dBµV avg**
Maximum input level*	Terr.	100 dBµV avg (passive) 90 dBµV avg (active)
Maximum output level*	Sat.	90 dBµV avg
Maximum output level*	Terr.	79 dBµV avg (passive) 83 dBµV avg (active)
Power consumption	From each receiver	75 mA (18 V)
Power consumption	From internal power supply	4.5 W (passive) + LNB 6.5 W (active) + LNB
Terr. preamplifier supply		150 mA max (12 V DC)
Dimensions (w,d,h)		47.0 x 15.2 x 8.7 cm (power cord length 130 cm)
Temperature range		-30 ~ +70 °C

*Terr.: EN 50083-3/60dB IMA₃ [dBµV]; SAT: EN 50083-3/35dB IMA₃ [dBµV]
**Max. input level increases when input attenuator is used. The given value is valid for no attenuation.

Τιμή Μονάδος: 169.90 €
Κατασκευαστής: EMP Centauri
Βάρος: 2.000 kg
