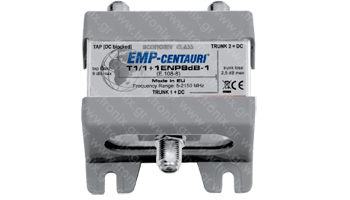

1in/2out wideband passive tap can be used for distributing signals in terrestrial and/or satellite frequency bands. Level balancing of whole system can be achieved by using different tap loss versions. We therefore offer this product with tap loss stepped from 9 to 20 dB (part types T1/1+1ENP8dB-1, T1/1+1ENP12dB-1, T1/1+1ENP16dB-1, T1/1+1ENP20dB-1).
| Parameter | Condition | Value |
| Frequency range | 5-2150 MHz | |
| Tap loss | T1/1+1ENP8dB-1 | 9 dB max |
| T1/1+1ENP12dB-1 | 12 dB max | |
| T1/1+1ENP16dB-1 | 16 dB max | |
| T1/1+1ENP20dB-1 | 20 dB max | |
| Trunk loss | 2.5 dB max | |
| Dimensions (w,d,h) | 5.4 x 6.0 x 3.2 cm | |
| Temperature range | -25 ~ +60 °C |
