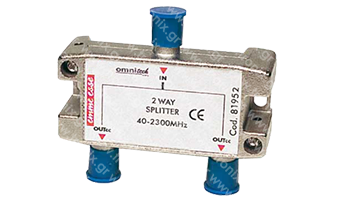

TV signal splitter, suitable for analogue and digital signal distribution and for centralised installations,  They are realized in die-casting mechanics with F connectors. The maximum versatility is guaranteed by the d.c. crossing among input and outputs. Frequency range: 5÷2400 MHz

Code: 81952
Model:PO2
Type: PassivE
Inputs n°: 1
Outputs n°: 2
Insertion loss Tv dB: 3.5÷4
Insertion loss Sat dB: 4÷6.5
Uncoupling Tv dB: >20
Uncoupling Sat dB: > 16
