Full technical description

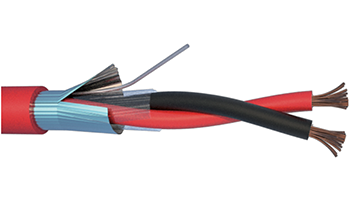

The Elan 032151R is designed for fixed indoor installations in fire detection and alarm systems. Its twisted-pair construction supports reliable signal transmission, while the overall shield helps minimise interference from nearby electrical equipment.
The cable uses stranded copper conductors, each with a 1.50 mm² cross-section, and a flame-retardant PVC sheath. The manufacturer's product category specifies a 400 V U₀ rating and compliance with the applicable flame-retardancy standards listed for this cable family. It is intended for installation in suitable conduits, cable trays and protected ducts, subject to the manufacturer's instructions and local regulations

Technical specifications
Specification    Details
Brand    Elan
Model    032151R
Cable type    Fire alarm cable
Number of conductors    2
Conductor cross-section    1.50 mm² each
Conductor material    Copper
Construction    Twisted pair (TW)
Shielding    Aluminium/polyester shield
Insulation / sheath    PVC
Flame retardancy    CEI 20-22 / IEC 60332 series, as specified for the product category
Rated voltage    400 V U₀, manufacturer-category specification
Packaging    100 m roll
Colour    Red, according to product listings
Application    Fixed fire alarm and security installations
