Full technical description

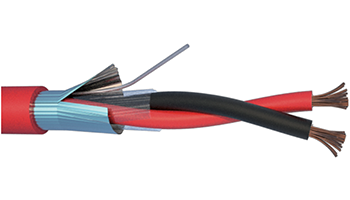

The Elan 032101R is a two-core twisted and shielded cable designed for fire alarm, signal transmission and safety system installations. It features stranded copper conductors with a cross-sectional area of 1.00 mm² per conductor and an overall aluminium shield to help protect signal integrity against electromagnetic interference.
The cable is fitted with a PVC outer sheath and flame-retardant insulation, making it suitable for fixed installations in conduits, cable trays and protected underground ducts, subject to the applicable installation requirements.
Its twisted-pair construction supports dependable signal transmission, while the shielding provides additional protection in electrically noisy environments. The 100-metre roll is practical for professional fire alarm and security system installations.

Technical specifications
Specification    Details
Brand    Elan
Model    032101R
Product type    Fire alarm / signal cable
Number of conductors    2
Conductor cross-section    1.00 mm² per conductor
Conductor material    Stranded copper
Construction    Twisted pair (TW)
Shielding    Aluminium shielding
Outer sheath    PVC
Outer diameter    Approx. 6 mm
Flame retardancy    CEI 20-22; IEC 60332 series, as specified by the manufacturer
Rated voltage    400 V U₀, according to the manufacturer's cable-category information
Packaging    100 m roll
Origin    Italy
