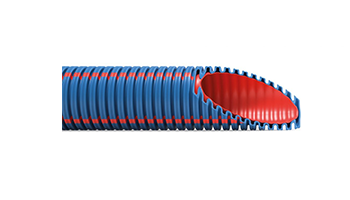

DUROFLEX PLUS Halogen free & Low Smoke Three-layer corrugated pipe Ø32, DUROFLEX PLUS Ф32



Halogen free & Low Smoke Three-layer corrugated pipe for indoor / outdoor installation, Non-combustible, UV stabilized PP material with resistance to UV radiation over 5 years. Free of halogen elements, no release of toxic or corrosive gases and reduced level of smoke emission in case of fire. Smooth inner layer of material with up to 50% less friction for easy wiring. Patented technology to reduce static electricity. Patented technology for PP material that does not attract rodents. Outer / Inner diameter 32 / 23.7mm. Mechanical resistance ≥750N / 5cm, impact bag. resistance: 2J (-25ºC). Outer layer in color: blue (RAL 5019) with the possibility of marking in a different color for standard separation of the wires. Working temp: -25º ~ 105ºC. Degree of protection with CONDUR connection: IP65. Suitable for installation in outdoor conditions, concrete, plaster, indoor: open surface, suspended ceiling, double floor, underground. VDE EN certificates: EN61386-22: 2011-12; EN61386-1: 2008; EN61386-22: 2004 + A11: 2010; EN60754-2: 2015-08; EN60754-2: 2014; EN61034-2: 2014-11; EN61034-2: 2005 + A1: 2013 + A2: 2020; EN50642: 2019-05. Roll 25m.



Weight c.a. 3 Kgr
