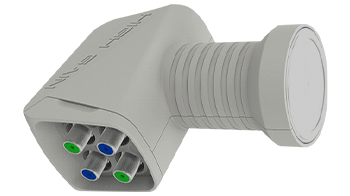

ITEM

SPECIFICATIONS

UNIT

Input Frequency:

10.7～11.7

11.7～12.75

GHz

Output Frequency:

950～1950

1100 ～2150

MHz

LO frequency:

9.75

10.6

GHz

LO initial accuracy (25°C):

±0.5

MHz

LO temperature drift (-30°C～+60°C)

±1

MHz

LO phase noise (@1K Hz offcet):

–60

dBc/Hz(Max)

@10К Нz:

–80

dBc/Hz(Max)

@100К Нz:

–90

dBc/Hz(Max)

Noise figure

0.7 dB(Max.)/0.3dB(Typ.)

dB

Conversion gain:

61(typ.) 58 ～65

dB

Gain variation (over operatig band):

5 p-p (Typ.) 7 p-p (Max.)

dB

Gain flatness (any 26 MHz):

±0.5

dB

Cross pol. Isolation:

20dB(Min.) 25dB(Typ.)

dB

Image rejection:

40

dB(Min.)

1 dB compression point:

0

dB(Min.)

Output VSWR:

2.5:1(Max.)

InBand Spurs:

–58

dB(Max.)

DC current consumption:

118 (Typ.) 130(Max.)

mA(Max.)

Polarization switching voltage:

Vertical: 10.5～14.5

V

Horizontal: 15～21

V

Band switching voltage:

150～350

mV

Band switching frequency:

High band: 22±2kHz tone

Regulator of ripple:

20

mV(Max.)

Operation temperature:

–40°C～+60°C

°C

Output connector:

75 ohm F-type

Waterproof:

Ipx8(Typ.) 0.25kg/Cm²(Min.)
