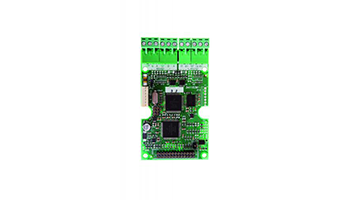

DETNOV TRED-150 Network connection RS485



Network connection RS485 communication card for addressable CAD-150 panels. Allows ring or bus installation networking. Up to 32 nodes. Includes electric isolation circuit between nodes. Printer output via serial connection. 1.000 meters maximum distance between nodes.



The TRED-150 network card lets you connect any analogue control panel to DETNOV's fire detection network. The card also has a RS232 port to connect a serial printer to the panel.

The DETNOV’s network can be a bus or a ring with a maximum of 32 nodes; the distance between nodes can reach up to 1 Km to make a 32 Km networked system.





o RS485 network output

o RS232 printer output



o Maximum nodes in the network: 32

o Maximum distance between nodes: 1 Km

o Maximum network coverage:  32 Km

o Operating mode: Peer to Peer

o 2 x 1.5 mm2 twisted and shielded cable
