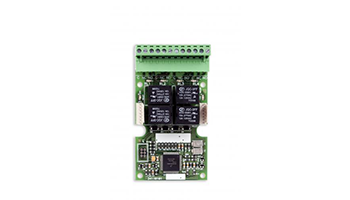

DETNOV TRD-100 Expansion card



Expansion card of 4 free voltage relay outputs for conventional CCD-100 control panels. Maximum load: 10A at 30Vdc. Maximum 3 cards per panel. Programmable via SWD-100 software.



Description



The TRD-100 card has been designed to increase the number of relay outputs to DETNOV's CCD-100 range of conventional fire control panels. The TRD-100 card provides four free contact relay outputs with their three corresponding contacts (common, normally opened, normally closed), which may be used to carry out activations by zone in a conventional system. CCD-100 fire control panels are able to host up to three TRD-100 cards, obtaining a total of 12 additional relay outputs.



Features



o 4 relay outputs

o Up to 3 cards per control panel



Relays





Environment
