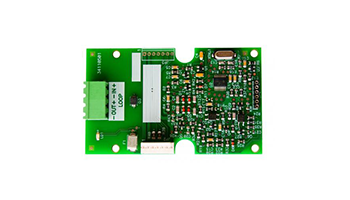

DETNOV TPLD-100 Loop gateway card



Addressable loop gateway card for conventional CCD-100 and CCD-103 panels range. Allows alarms and faults communication from the conventional control panel to the addressable loop to a CAD-150 control panel range.



Description



The TPLD-100 card allows the connection of the CCD-100 conventional control panels range and the CCD-103 extinguishing panel to the Detnov CAD-150 addressable loop.

The installation of the TPLD-100 card gives any addressable installation greater flexibility in the distribution of the devices, as well as the possibility of integrating an extinguishing system into the Detnov addressable loop.





Features



° Allows to connect a CCD-100 conventional control panel range to the loop of any CAD-150 addressable control panel

° Allows to connect a CCD-103 extinguishing control panel to the loop of any CAD-150 addressable control panel

° No configuration is required



Technical features



Connections



Environment
