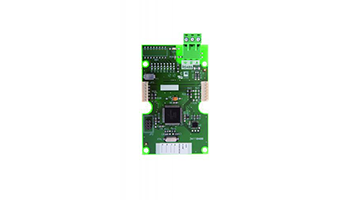

DETNOV TMD-100 RS485 communication card



RS485 communication card for integration to a network using the Modbus protocol, for conventional CCD-100 panels. Allows remote control of the main functions of the fire panel and integrate it with third parties.



Description



The TMD-100 network card lets you connect any conventional control panel to DETNOV's fire detection network using Modbus Protocol.

The DETNOV network can be a bus with a maximum of 32 nodes; the distance between nodes can reach up to 1 Km.

The Modbus Communication Card is used to access the system remotely.

The TMD-100 Modbus Communication Card is an Expansion Card designed for DETNOV’s CCD-100 Series to allow the remote access to the main functions for these Conventional Fire Control Panels.



Features



o RS485 network output

o Remote Access and Support over the Modbus Protocol

o Enable or Disable Control Panel Zones

o Enable or Disable Test Zones

o Enable or Disable outputs for TRD-100 and TSD-100 modules

o Check Power Supplier Status

o Check Auxiliary Input Status

o Enable or Disable Alarm Relay

o Enable or Disable Fault Relay

o Trigger or Silence Sounders

o Check Sounders Status

o Check Auxiliary Output 24V Status

o Allow Reset Control Panel
