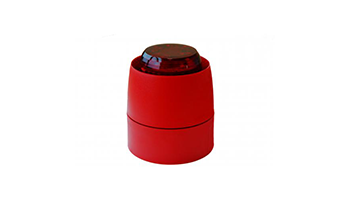

DETNOV SFD-230 Alarm sounder



Outdoor alarm sounder with beacon. 32 selectable tones. Power at 24Vdc / 8mA at 36mA according to tone. IP65. Red color. Acoustic power between 78 and 116 dB according to tone. CPR certificate EN54-3. Dimensions: 100 x 75 mm.



Description



The SCD-200, SCD-210, SFD-220 and SFD-230 are conventional sounders and are compatible with DETNOV’s conventional control panels and analog monitor units, and with the majority of the conventional panels in the market.

SCD-200 and SCD-210 sounder is a highly efficient, low current and 32 user-selectable tones sounder with EN54 Part 3 approval.

SFD-220 and SFD-230 combines a highly efficient, low current and 32 user-selectable tones sounder with a beacon that uses ultra-efficient LEDs.

Efficient acoustics using piezo technology means that the sound emits a high quality tone with minimal power consumption.



Features



o Compatible with DETNOV’s conventional control panels

o Very Low Current

o 32 user-selectable tones

o Volume settings (Low, medium, high)

o Highly efficient -9 at 34 mA depending on the tone

o Easy installation with base

o IP21 up to IP65 version available.





Applications



Conventional sounders are the way to warn people in a building to start the evacuation procedure in case of alarm. They are the basic elements of warning people in any fire detection system installation.
