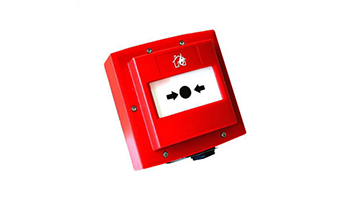

DETNOV PCD-100WP call point



Conventional manual call point IP67, with test key, for surface installation. Suitable for outdoor. Red color. No resistance of 100 Ohm included.-2W. Dimensions: 119 x 128 x 62 mm. CPR certificate EN54-11.



Description



The conventional outdoor conventional manual call point PCD-100WP is designed to be used with conventional Detnov fire detection control panels and are, together with detectors, the basic elements of alarm initiation in a fire detection system.

The PCD-100WP manual call point is approved according to EN 54-11. It is connected via two wires to the conventional detection zone. The LED lights up in a fixed way when it has been pushbutton to generate a fire alarm.

The manual call points use a patented mechanism that provides a real action, glass breaking sensation, in its activation. An indicator (yellow and black) is displayed at the top of the window when activated. It rearms with a key and is ready to be used immediately, while offering the user the benefits and environmental advantages of an operating device with replacement to the initial state without using crystals.



Features



° Resettable outdoor manual call point

° Includes a key for maintenance test

° Includes 100 Ω 2W resistance for the alarm level

° Protection degree IP67

° EN 54-11 approved



Applications



The resettable manual call point PCD-100WP of Detnov allows the immediate manual activation of a fire alarm.

It is one of the basic devices in any fire detection system, since it allows the activation by the user in case of fire, prior to the entry of an alarm of the automatic detection system.
