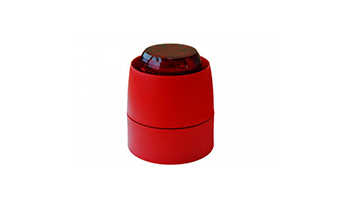

DETNOV MAD-465-I Loop sounder with beacon



Addressable loop sounder with beacon and built-in isolator. Low power consumption. 32 tones and 3 configurable volumes (Low, Medium, High). Acoustic power 76 dBA to 117 dBA depending on the selected tone. It takes just one address in the loop. Red color. From IP65. Deep base. CPR certificate EN54-3 and EN54-17. Dimensions: 100 x 75 mm



Descriptions



The MAD-464-I and MAD-465-I addressable sounders are designed to be connected to the DETNOV ́s addressable fire alarm panels loop. MAD-464-I provides acoustic signalization at 32 different tones and 3 sound levels and MAD-465-I the same but adding a beacon. These sirens can be addressed by means of the PGD-200 hand held programmer, consuming just one address in the loop

Due to its novel design, current consumption has been reduced to 20 mA. Installing up to 20 sounders per loop is possible due to low current consumption.



Features



o Compatible with DETNOV’s fire control panels

o Addressable sounders

o Low current consumption

o Two-wired connection

o Loop-powered device

o Connections through removable terminal blocks, and simple fitting of the cable o With Isolator
