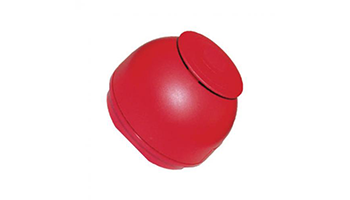

DETNOV MAD-461-I Sirin



Addressable loop sounder with isolator. Low power consumption, acoustic power 87.5 dB. It takes just one address in the loop. Color red. For indoor use. IP21. CPR certificate EN54-3 and EN54-17. Dimensions: 65x90 mm.



Descriptions



The range of MAD-400 modules has been developed to offer a wide and complete range of input and output ports to be used with DETNOV's CAD-150 family of analogue fire control panels. These modules let you manage a wide variety of situations, by monitoring and acting according to the installation's requirements. All the modules of this range are available with and without Isolator

The MAD-461 and MAD-463 analogue sounders are designed to be used with DETNOV's analogue fire control panels. The MAD-461 provides and acoustic signalling while MAD-463 provides optical-acoustic signalling, both to the fire detection system. The sounders are directly connected to the loop and they must be addressed through the PGD-200 programmer (Isolator version support auto adressing). Each sounder takes up 1 address in the loop.

Due to its novel design, current consumption has been reduced to 7 mA. Installing up to 50 sounders per loop is possible due to low current consumption.





Features



o Compatible with DETNOV’s fire control panels

o Addressable sounders

o Low current consumption

o Two-wire connection with non-polarity

o Loop-powered device

o Connections through removable terminal blocks, and simple fitting of the cable o EN54-3 and EN54-17 approved

o MAD-461-I and MAD-463-I with Isolator
