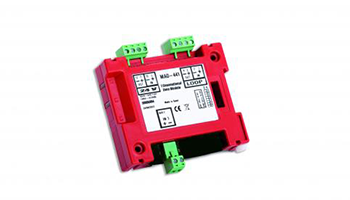

DETNOV MAD-441 Control module



Addressable monitor module of 1 conventional zone, allows connection of up to 20 conventional detectors and / or 32 conventional manual call points. Can identify between detector alarm and push button, between the fault by cutting or by short circuit in the zone. It takes one loop address. Requires 24 Vdc auxiliary power. LED status indicator. Connection through removable strips up to 2.5mm2 section. Possibility of being installed in DIN rail or flat to wall mounting in box BOX-400. Consumption less than 300μA at rest. Allows installation without polarity. Red color. Dimensions: 100 x 82 x 23 mm. CPR certificate EN54-18.





Description



The range of MAD-400 modules has been developed to offer a wide and complete range of input and output ports to be used with DETNOV’s CAD-150 family of analogue fire control panels. These modules let you manage a wide variety of situations, by monitoring and acting according to the installation's requirements. All the modules of this range are available with and without Isolator.

The MAD-400 modules have been designed to facilitate their installation process, and they may be installed using screws or fitted into a DIN rail. Each module is equipped with removable terminal blocks and a LED status indicator. The addressing of the modules is carried out through the PGD-200 programmer (Isolator version support auto adressing).

The MAD-441 and MAD-442 modules provide 1 and 2 conventional zones which support up to 20 conventional detectors and/or 32 conventional manual call points. The conventional zone monitor unit is able to distinguish between a detector alarm and a manual call point alarm.

The MAD-441 and MAD-442 modules require a 24V auxiliary power supply to supply the conventional detectors and the manual call point.





Features



o Simple installation on the wall or fitted into a DIN rail

o Non-polarity supported

o Addressing through a programmer

o Stable communication protocol with immunity to noise o Requires an auxiliary 24V power supply

o Connections through removable terminal blocks, and simple fitting of the cable

o EN54-18 and EN54-17 approved

o MAD-441-I and MAD-442-I with Isolator
