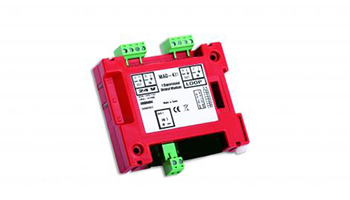

DETNOV MAD-431 Control module



Addressable control module of 1 monitored 24V output, for the activation of optical-acoustic signaling devices or maneuvers that require power, discriminating the fault of cut or short circuit in said line. It takes one loop address. Requires 24 Vdc auxiliary power. LED status indicator. Connection through removable strips up to 2.5mm2 section. Possibility of being installed in DIN rail or flat to wall mounting in box BOX-400. Consumption less than 300μA at rest. Allows installation without polarity. Red color. Dimensions: 100 x 82 x 23 mm. CPR certificate EN54-18.



Description



The range of MAD-400 modules has been developed to offer a wide and complete range of input and output ports to be used with DETNOV’s CAD-150 family of analogue fire control panels. These modules let you manage a wide variety of situations, by monitoring and acting according to the installation's requirements. All the modules of this range are available with and without Isolator.

The MAD-400 modules have been designed to facilitate their installation process, and they may be installed using screws or fitted into a DIN rail. Each module is equipped with removable terminal blocks and a LED status indicator. The addressing of the modules is carried out through the PGD-200 programmer (Isolator version support auto adressing).

The MAD-431 and MAD-432 modules provide 1 or 2 supervised 24V outputs which may be configured through a micro-switch as supervised voltage outputs or a supervised sounder outputs. When they are configured as a sounder output, switching the sounder control panel's keys on and off will control the modules by switching the outputs of the modules on and off.

The MAD-431 and MAD-432 modules require a 24V auxiliary power supply to supply the load.





Features



o Simple installation on the wall or fitted into a DIN rail

o Non-polarity supported

o Addressing through a programmer

o Stable communication protocol with immunity to noise o Requires an auxiliary 24V power supply

o Connections through removable terminal blocks, and simple fitting of the cable

o EN54-18 and EN54-17 approved

o MAD-431-I and MAD-432-I with Isolator
