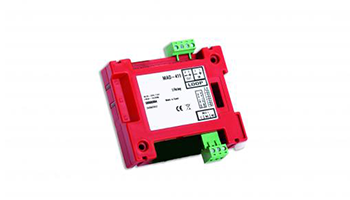

DETNOV MAD-411 Monitor module



Addressable control module for 1 voltage-free relay output providing non-resettable contact C, NO, NC. It takes one address in the loop. Fed directly from the loop. LED status indicator. Connection through removable strips up to 2.5mm2 section. Possibility of being installed in DIN rail or flat to wall mounting in box BOX-400. Consumption less than 300μA at rest. Non polarity installation. Red color. Dimensions: 100 x 82 x 23 mm. CPR certificate EN54-18.



Description



The range of MAD-400 modules has been developed to offer a wide and complete range of input and output ports to be used with DETNOV’s CAD-150 family of analogue fire control panels. These modules let you manage a wide variety of situations, by monitoring and acting according to the installation's requirements. All the modules of this range are available with and without Isolator .

The MAD-400 modules have been designed to facilitate their installation process, and they may be installed using screws or fitted into a DIN rail. Each module is equipped with removable terminal blocks and a LED status indicator. The addressing of the modules is carried out through the PGD-200 programmer (Isolator version support auto adressing).

The MAD-411 and MAD-412 modules provide 1 and 2 free contact relay outputs to the fire detection system. These contacts usually switch some peripheral circuits on and off. In the case of having two contacts, they can operate independently and specific programs can be assigned independently to them. The MAD-411 and MAD-412 modules take the power supply directly from the loop.





Features



o Simple installation on the wall or fitted into a DIN rail

o Non-polarity supported

o Addressing through a programmer

o Stable communication protocol with immunity to noise o Loop-powered device

o Connections through removable terminal blocks, and simple fitting of the cable o EN54-18 and EN54-17 approved

o MAD-411-I and MAD-412-I with Isolator
