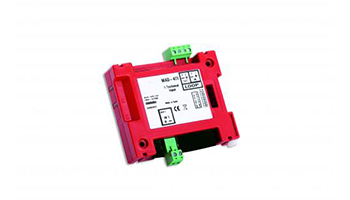

DETNOV MAD-401 Monitor module



Addressable monitor module with 1 supervised technical input for device status indication providing NC or NO contact. It takes one address in the loop. Fed directly from the loop. LED status indicator. Connection through removable strips up to 2.5mm2 section. Possibility of being installed in DIN rail or flat to wall mounting in box BOX-400. Non polarity installation. Consumption less than 300μA at rest. Red color. Dimensions: 100 x 82 x 23 mm. CPR certificate EN54-18.



Description



The range of MAD-400 modules has been developed to offer a wide and complete range of input and output ports to be used with DETNOV’s CAD-150 family of analogue fire control panels. These modules let you manage a wide variety of situations, by monitoring and acting according to the installation's requirements. All the modules of this range are available with and without Isolator.

The MAD-400 modules have been designed to facilitate their installation process, and they may be installed using screws or fitted into a DIN rail. Each module is equipped with removable terminal blocks and a LED status indicator. The addressing of the modules is carried out through the PGD-200 programmer (Isolator version support auto adressing).

The MAD-401 and MAD-402 modules provide 1 and 2 logical inputs to the fire detection system, and are good for the supervision of any event that must be controlled (for example the opening or closing of doors, etc.). The MAD-401 and MAD-402 modules take the power supply directly from the loop.

Technical inputs can be configured through a micro-switch, depending on the signal type, to monitorize NC or NO input. There is also the option of configuring the supervision or non-supervision of the technical input.



Features



o Simple installation on the wall or fitted into a DIN rail

o Non-polarity supported

o Addressing through a programmer

o Stable communication protocol with immunity to noise

o Loop-powered device

o Connections through removable terminal blocks, and simple fitting of the cable o EN54-18 approved
