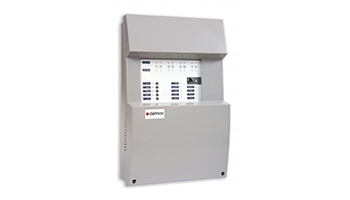

DETNOV CCD-112 Fire alarm panel



Conventional fire alarm panel for 12 zones mounted on ABS plastic housing. Flush mount option. Discriminates between detector alarm and manual call points alarm. Up to 32 detectors per zone. Possibility to connect to PC via USB for complex programming. Integrable to addressable systems directly to the loop. It has two configurable supervised siren outputs (1A maximum consumption between the two), alarm and fault relay outputs free of voltage, auxiliary 24V output (500 mA maximum consumption), 24V resettable output (500 mA maximum consumption) and 1 external input programmable. TSD100: 4 supervised siren outputs, TMD-100: Modbus output for integrations, TCD: Contact ID protocol for connection to CRA, TPLD-100: integration to addressable loop). Tele maintenance and remote control through the TED-151-WS/TED-151-CL card. Optical-acoustic indications by zones. Multilingual keyboard. CPR certificate EN54-2 ,EN54-4 and EN54-13. Dimensions: 443 x 268 x 109 mm. Requires 2 BTD-1207 batteries not included.





Description



The CCD-100 fire control panels have been certified according to EN54-2 and EN54-4 standards, and they have been designed to meet all the requirements of small and medium installations.

This range of fire control panels is made up of 4 models, and it offers 2, 4, 8 and 12 zone models. Among the main features shared by the entire range: differentiation between the manual call point and detector alarm, free contact fault and alarm relay outputs, two supervised sounder outputs, 24V output, 24V resettable output and configurable input. The range also supports the connection of optional cards such as four free contact relays, four supervised output sounders and a communication card to control the system remotely.





Features



o 2, 4, 8, and 12 zone models

o Free contact alarm relay output

o Free contact fault relay output

o 2 supervised sounder outputs

o Sounder delay configuration on board

o 24V auxiliary output

o 24V resettable output

o Configurable external input

o Test mode with auto-reset function

o Multi-language keyboard

o Capacity for 72h stand-by batteries

o ABS plastic case which can be fitted into the wall

o Optional supervised sounder card

o Optional free contact relay card o Optional communication card

o EN54-2 and EN54-4 approved

o Weight (without batteries): 1.9 kg
