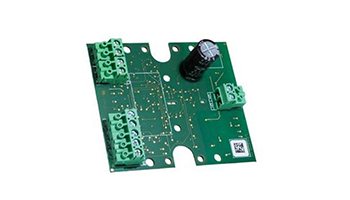

DETECTOMAT PL 3321 ECM Control module



Intelligent Extinguishing control module for loop3000 system with bi-directional isolator to control One-Zone-Extinguishing panels.



Intelligent Extinguishing control module for Loop 3000 system with bi-directional isolator to control One-Zone-Extinguishing panels. With two supervised inputs (resistance latent 3,3 k Ohm; trigger 3,3 k Ohm || 680 Ohm) and one potential free optical-relay-output. The status of the module is displayed in the dc 3500 fire control panel.



• According to the requirements of VdS 2496 and VdS 2540

• Monitoring of the status via Loop 3000

• Automatic and manual addressing with Loop 3000

• Integrated bi-directional isolator

• LED Service indicator for alarm (red), fault and life signal (yellow) integrated in the hosuing

• Weatherproof, halogen free and impact resistant housing according to DIN EN 60670 (VDE 0606)



Weight 115 gr
